Beskrivning

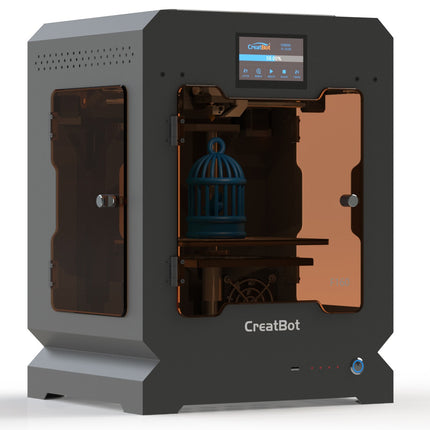

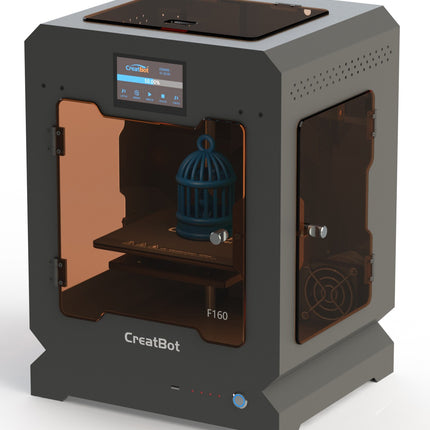

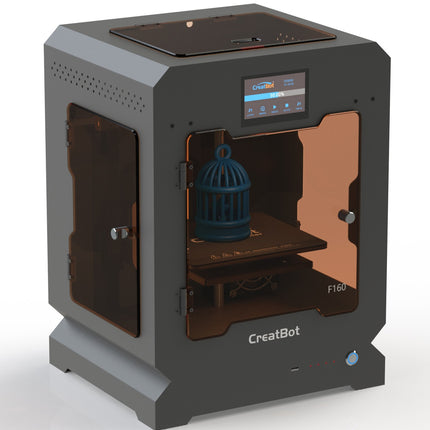

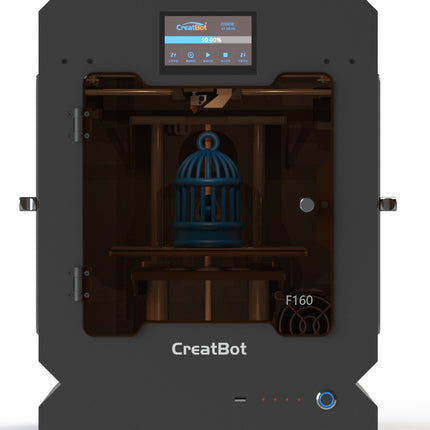

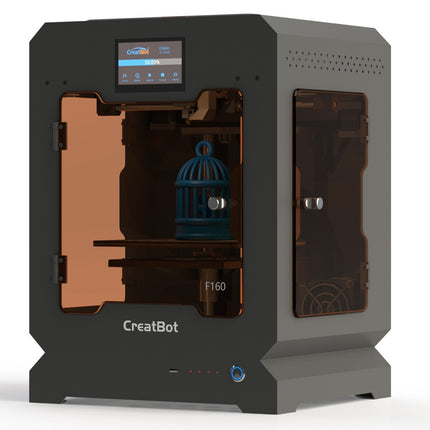

En grym och smidig 3dskrivare från creatbot, en av våra favoriter!
Creatbot F160 modellen har helt innesluten byggyta som stödjer high end material. Munstycket på denna stödjer upp till 420C så du kan printa med Nylon,peek,ultem m.m.
Notera för besta resultat i utskrifter med PeeK, PEI m.m så rekomenderas en uppvärmd byggkammare som finns på exempelvis creatbot F430 modellen
Produkt fakta
* Build volume of 160 x 160 x 200 mm
* Max. Nozzle temperature: 400 ° C, Bed temperature: Up to 130 ° C
* Filament Compatibility: PLA, ABS, Carbon Fiber, Wood, Nylon, PC, PTEG, HIPS, PP, Flexible, etc.
* High precision, filament detection & outage restored
PRINTINGFFF -Fused Filament Fabrication
Print Technology:2 Dual Extruders
Fused Deposition Modeling300*250*520mm
Build Volume:0.04 mm
160*160*200mm (F160)Up to 120 mm/s
Number of Nozzles:XYZ Axis 0.01 mm
SingleYes, with key board
Resolution:MAX 350° C
0.04mmMAX 120 ° C
Layer Resolution:PLA, ABS (small items), HIPS, PVA, PETG, Woodfill and others
0.01mm3.0 mm
Filament Diameter:USB and SD card
1.75mmAll steel
Filament Compatibility:CreatBot multi-language version
PLA, ABS, Carbon Fiber, Wood, Nylon, PC, PTEG, HIPS, PP, Flexible, etc.STL, OBJ, GCode, Amf
Nozzle Diameter:420*380*790mm
0.4mm (0.3, 0.5, 0.6, 0.8, 1.0mm)0.4 mm
Print File Type:Windows, Linux, Mac OS, OSX
GCO, GCODE35Kg
TEMPERATURE55Kg
Ambient Operating Temperature:
15-32°C
Max. Nozzle Temperature:
420°C
Max. Bed Temperature:
130°C
SPEED
Best Printing speed:
60mm/s
Max. Printing speed:
200mm/s
Max. traveling speed:
200mm/s
MECHANICAL
Construction:
Power-Coated Steel, Aluminum Casting for Motion Components, POM
Build Plate:
Heatable Aluminium PCB with BuildTak
Build Plate Leveling:
Manual
Extruder:
Directly Drive
Stepper Motors:
1.8° Step Angle with 1/16 Micro-stepping
X Y Positioning Precision:
12.7 Microns
Z Positioning Precision:
1.25 Microns
ELECTRICAL
Power Requirements:
100-240V, 50-60Hz
Max. Power:
300W
Screen:
4.3" Touch Screen
Control Chip:
ATmega 2560
Storage Media:
USB Disk
Connectivity:
USB
SOFTWARE
Software Bundle:
CreatWare Multi-language
Supported File Types:
STL, OBJ, AMF
Operating Systems:
Windows (7,8,10)
Mac OS X
SPECIAL FUNCTION
Outage Restored:
Sava data when power is off
Filament Detection:
Pause printing when filament run out
Automatic Shut-down:
Turn off the power automatically when printing is complete
SIZE & WEIGHT
Product Dimensions & Weight:
370*320*490mm 20Kg
Packing Size & Weight:
470*420*600mm 25Kg
